bus.h File Reference

#include <stdint.h>

Include dependency graph for bus.h:

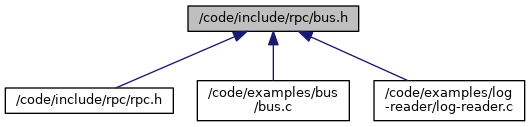

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	rpc_bus_node

Macros
#define	RPC_BUS_EVENT_HANDLER(_fn, _arg)

Typedefs
typedef void(^	rpc_bus_event_handler_t) (rpc_bus_event_t event, struct rpc_bus_node *_Nonnull node)

Enumerations
enum	rpc_bus_event_t { RPC_BUS_ATTACHED, RPC_BUS_DETACHED }

Functions
int	rpc_bus_open (void)
int	rpc_bus_close (void)
int	rpc_bus_ping (const char *_Nonnull serial)
int	rpc_bus_enumerate (struct rpc_bus_node *_Nullable *_Nonnull result)
void	rpc_bus_free_result (struct rpc_bus_node *_Nonnull result)
void	rpc_bus_register_event_handler (_Nonnull rpc_bus_event_handler_t handler)
void	rpc_bus_unregister_event_handler (void)

Detailed Description

Bus transport API

Definition in file bus.h.

Macro Definition Documentation

RPC_BUS_EVENT_HANDLER

#define RPC_BUS_EVENT_HANDLER	(		_fn,
			_arg
	)

Value:

^(rpc_bus_event_t _event, struct rpc_bus_node *_node) {     \
            _fn(_arg, _event, _node);                   \
    }

Converts function pointer to an rpc_bus_event_t block type.

Definition at line 73 of file bus.h.

Typedef Documentation

rpc_bus_event_handler_t

typedef void(^ rpc_bus_event_handler_t) (rpc_bus_event_t event, struct rpc_bus_node *_Nonnull node)

Hotplug event handler callback block type.

Definition at line 67 of file bus.h.

Enumeration Type Documentation

rpc_bus_event_t

enum rpc_bus_event_t

Bus hot-plug event type.

Enumerator
RPC_BUS_ATTACHED	Device attached to the system
RPC_BUS_DETACHED	Device detached from the system

Definition at line 45 of file bus.h.

Function Documentation

rpc_bus_close()

int rpc_bus_close

(

void

)

Closes the librpc bus connection.

Returns

0 on success, -1 on error

Examples:

bus.c.

rpc_bus_enumerate()

int rpc_bus_enumerate

(

struct rpc_bus_node *_Nullable *_Nonnull

result

)

Enumerates connected devices on the RPC bus.

Parameters

result

Array of rpc_bus_node elements

Returns

0 on success, -1 on error

Examples:

bus.c.

rpc_bus_free_result()

void rpc_bus_free_result

(

struct rpc_bus_node *_Nonnull

result

)

Frees struct rpc_bus_node array obtained in rpc_bus_enumerate call.

Parameters

result

Array of struct rpc_bus_node elements

Examples:

bus.c.

rpc_bus_open()

int rpc_bus_open

(

void

)

Opens the librpc bus connection.

Returns

0 on success, -1 on error

Examples:

bus.c.

rpc_bus_ping()

int rpc_bus_ping

(

const char *_Nonnull

serial

)

Checks whether a node with specified serial is reachable.

Parameters

serial

Node serial number

Returns

0 if reachable, -1 otherwise

Examples:

bus.c.

rpc_bus_register_event_handler()

void rpc_bus_register_event_handler

(

_Nonnull rpc_bus_event_handler_t

handler

)

Configures an event handler block to be called whenever a bus event occurs.

Parameters

handler

Bus event handler

rpc_bus_unregister_event_handler()

void rpc_bus_unregister_event_handler

(

void

)

Unsets the previously set event handler. If there was no handler previously configured, does nothing.
