#include <Block.h>
#include <sys/time.h>
#include <rpc/config.h>
#include <rpc/object.h>

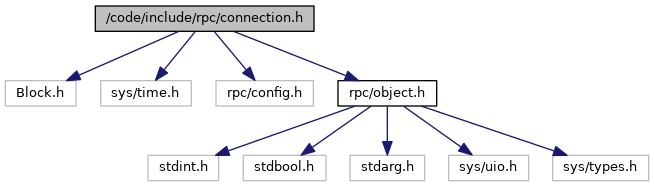

Include dependency graph for connection.h:

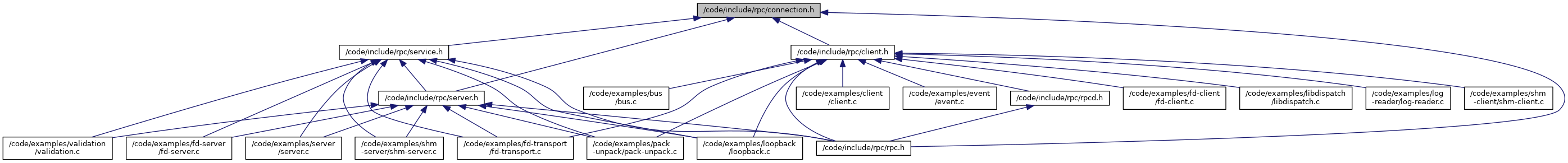

This graph shows which files directly or indirectly include this file:

Macros
#define	RPC_HANDLER(_fn, _arg)

#define	RPC_PROPERTY_HANDLER(_fn, _arg)

#define	RPC_ERROR_HANDLER(_fn, _arg)

#define	RPC_RAW_HANDLER(_fn, _arg)

#define	RPC_CALLBACK(_fn, _arg)

#define	RPC_NULL_FORMAT "[]"

Typedefs
typedef enum rpc_error_code	rpc_error_code_t

typedef enum rpc_call_status	rpc_call_status_t

typedef enum rpc_call_type	rpc_call_type_t

typedef struct rpc_connection *	rpc_connection_t

typedef struct rpc_call *	rpc_call_t

typedef void(^	rpc_handler_t) (const char _Nullable path, const char _Nullable interface, const char *_Nonnull name, _Nonnull rpc_object_t args)

typedef void(^	rpc_property_handler_t) (_Nonnull rpc_object_t value)

typedef void(^	rpc_error_handler_t) (rpc_error_code_t code, _Nullable rpc_object_t args)

typedef int(^	rpc_raw_handler_t) (const void _Nonnull msg, size_t len, const int _Nullable fds, size_t nfds)

typedef bool(^	rpc_callback_t) (_Nonnull rpc_call_t call)

Enumerations
enum	rpc_error_code { RPC_INVALID_RESPONSE = 1, RPC_CONNECTION_TIMEOUT, RPC_CONNECTION_CLOSED, RPC_CALL_TIMEOUT, RPC_SPURIOUS_RESPONSE, RPC_LOGOUT, RPC_TRANSPORT_ERROR, RPC_OTHER }

enum	rpc_call_status { RPC_CALL_IN_PROGRESS, RPC_CALL_STREAM_START, RPC_CALL_MORE_AVAILABLE, RPC_CALL_DONE, RPC_CALL_ERROR, RPC_CALL_ABORTED, RPC_CALL_ENDED }

enum	rpc_call_type { RPC_OUTBOUND_CALL, RPC_INBOUND_CALL }

Functions
_Nullable rpc_connection_t	rpc_connection_create (void *_Nonnull cookie, _Nullable rpc_object_t params)

int	rpc_connection_close (_Nonnull rpc_connection_t conn)

struct rpc_context *_Nullable	rpc_connection_get_context (_Nonnull rpc_connection_t conn)

int	rpc_connection_set_context (_Nonnull rpc_connection_t conn, struct rpc_context *_Nonnull ctx)

bool	rpc_connection_is_open (_Nonnull rpc_connection_t conn)

bool	rpc_connection_is_valid (_Nonnull rpc_connection_t conn)

int	rpc_connection_get_fd (_Nonnull rpc_connection_t conn)

void	rpc_connection_free (_Nonnull rpc_connection_t conn)

int	rpc_connection_subscribe_event (_Nonnull rpc_connection_t conn, const char _Nullable path, const char _Nullable interface, const char *_Nonnull name)

int	rpc_connection_unsubscribe_event (_Nonnull rpc_connection_t conn, const char _Nullable path, const char _Nullable interface, const char *_Nonnull name)

void *_Nullable	rpc_connection_register_event_handler (_Nonnull rpc_connection_t conn, const char _Nullable path, const char _Nullable interface, const char *_Nonnull name, _Nullable rpc_handler_t handler)

int	rpc_connection_unregister_event_handler (_Nonnull rpc_connection_t conn, void *_Nonnull cookie)

_Nullable rpc_object_t	rpc_connection_call_sync (_Nonnull rpc_connection_t conn, const char _Nullable path, const char _Nullable interface, const char *_Nonnull method,...)

_Nullable rpc_object_t	rpc_connection_call_syncv (_Nonnull rpc_connection_t conn, const char _Nullable path, const char _Nullable interface, const char *_Nonnull method, va_list ap)

_Nullable rpc_object_t	rpc_connection_call_syncp (_Nonnull rpc_connection_t conn, const char _Nullable path, const char _Nullable interface, const char _Nonnull method, const char _Nonnull fmt,...)

_Nullable rpc_object_t	rpc_connection_call_syncpv (_Nonnull rpc_connection_t conn, const char _Nullable path, const char _Nullable interface, const char _Nonnull method, const char _Nonnull fmt, va_list ap)

_Nullable rpc_object_t	rpc_connection_call_simple (_Nonnull rpc_connection_t conn, const char _Nonnull name, const char _Nonnull fmt,...)

_Nullable rpc_call_t	rpc_connection_call (_Nonnull rpc_connection_t conn, const char _Nullable path, const char _Nullable interface, const char *_Nonnull name, _Nullable rpc_object_t args, _Nullable rpc_callback_t callback)

_Nullable rpc_object_t	rpc_connection_get_property (_Nonnull rpc_connection_t conn, const char _Nullable path, const char _Nullable interface, const char *_Nonnull name)

_Nullable rpc_object_t	rpc_connection_set_property (_Nonnull rpc_connection_t conn, const char _Nullable path, const char _Nullable interface, const char *_Nonnull name, rpc_object_t _Nonnull value)

_Nullable rpc_object_t	rpc_connection_set_propertyp (_Nonnull rpc_connection_t conn, const char _Nullable path, const char _Nullable interface, const char _Nonnull name, const char _Nonnull fmt,...)

_Nullable rpc_object_t	rpc_connection_set_propertypv (_Nonnull rpc_connection_t conn, const char _Nullable path, const char _Nullable interface, const char _Nonnull name, const char _Nonnull fmt, va_list ap)

void *_Nullable	rpc_connection_watch_property (_Nonnull rpc_connection_t conn, const char _Nullable path, const char _Nullable interface, const char *_Nonnull property, _Nonnull rpc_property_handler_t handler)

int	rpc_connection_send_event (_Nonnull rpc_connection_t conn, const char _Nullable path, const char _Nullable interface, const char *_Nonnull name, _Nonnull rpc_object_t args)

int	rpc_connection_ping (_Nonnull rpc_connection_t conn)

int	rpc_connection_send_raw_message (_Nonnull rpc_connection_t conn, const void _Nonnull msg, size_t len, const int _Nullable fds, size_t nfds)

void	rpc_connection_set_raw_message_handler (_Nonnull rpc_connection_t conn, _Nullable rpc_raw_handler_t handler)

void	rpc_connection_set_event_handler (_Nonnull rpc_connection_t conn, _Nullable rpc_handler_t handler)

void	rpc_connection_set_error_handler (_Nonnull rpc_connection_t conn, _Nullable rpc_error_handler_t handler)

const char *_Nullable	rpc_connection_get_remote_address (_Nonnull rpc_connection_t conn)

bool	rpc_connection_supports_fd_passing (_Nonnull rpc_connection_t conn)

bool	rpc_connection_supports_credentials (_Nonnull rpc_connection_t conn)

bool	rpc_connection_has_credentials (_Nonnull rpc_connection_t conn)

uid_t	rpc_connection_get_remote_uid (_Nonnull rpc_connection_t conn)

gid_t	rpc_connection_get_remote_gid (_Nonnull rpc_connection_t conn)

pid_t	rpc_connection_get_remote_pid (_Nonnull rpc_connection_t conn)

int	rpc_call_wait (_Nonnull rpc_call_t call)

int	rpc_call_continue (_Nonnull rpc_call_t call, bool sync)

int	rpc_call_abort (_Nonnull rpc_call_t call)

int	rpc_call_set_prefetch (_Nonnull rpc_call_t call, size_t nitems)

int	rpc_call_timedwait (_Nonnull rpc_call_t call, const struct timespec *_Nonnull ts)

int	rpc_call_success (_Nonnull rpc_call_t call)

rpc_call_status_t	rpc_call_status (_Nonnull rpc_call_t call)

_Nullable rpc_object_t	rpc_call_result (_Nonnull rpc_call_t call)

void	rpc_call_free (_Nonnull rpc_call_t call)

Detailed Description

RPC connection API.

Definition in file connection.h.

Macro Definition Documentation

◆ RPC_CALLBACK

#define RPC_CALLBACK	(	_fn,
		_arg
	)

Value:

^(rpc_object_t _args, rpc_call_status_t _status) {      \
        return ((bool)_fn(_arg, _args, _status));       \
    }

Converts function pointer to a rpc_callback_t block type.

Definition at line 166 of file connection.h.

◆ RPC_ERROR_HANDLER

#define RPC_ERROR_HANDLER	(	_fn,
		_arg
	)

Value:

^(rpc_error_code_t _code, rpc_object_t _args) {         \
        _fn(_arg, _code, _args);                \
    }

Converts function pointer to a rpc_error_handler_t block type.

Definition at line 150 of file connection.h.

◆ RPC_HANDLER

#define RPC_HANDLER	(	_fn,
		_arg
	)

Value:

^(const char *_path, const char *_iface, const char *_name,     \
        rpc_object_t _args) {                   \
        _fn(_arg, _path, _iface, _name, _args);         \
    }

Converts function pointer to a rpc_handler_t block type.

Definition at line 133 of file connection.h.

◆ RPC_NULL_FORMAT

#define RPC_NULL_FORMAT "[]"

Definition of Null-argument fmt to pass to rpc_connection_call_simple()

Definition at line 174 of file connection.h.

◆ RPC_PROPERTY_HANDLER

#define RPC_PROPERTY_HANDLER	(	_fn,
		_arg
	)

Value:

^(rpc_object_t _value) {                    \
        _fn(_arg, _value);                  \
    }

Converts function pointer to a rpc_property_handler_t block type.

Definition at line 142 of file connection.h.

◆ RPC_RAW_HANDLER

#define RPC_RAW_HANDLER	(	_fn,
		_arg
	)

Value:

^(const void *_msg, size_t _len, const int *_fds, size_t _nfd) {\
        return (_fn(_arg, _msg, _len, _fds, _nfd));     \
    }

Converts function pointer to a rpc_message_handler_t block type.

Definition at line 158 of file connection.h.

Typedef Documentation

◆ rpc_call_status_t

typedef enum rpc_call_status rpc_call_status_t

Enumerates possible remote procedure call status values.

◆ rpc_call_t

typedef struct rpc_call* rpc_call_t

Definition of RPC call pointer.

Definition at line 99 of file connection.h.

◆ rpc_call_type_t

typedef enum rpc_call_type rpc_call_type_t

Enumerates possible remote procedure call status values.

◆ rpc_callback_t

typedef bool(^ rpc_callback_t) (_Nonnull rpc_call_t call)

Definition of RPC callback block type.

Definition at line 128 of file connection.h.

◆ rpc_connection_t

typedef struct rpc_connection* rpc_connection_t

Definition of RPC connection pointer.

Definition at line 94 of file connection.h.

◆ rpc_error_code_t

typedef enum rpc_error_code rpc_error_code_t

Enumerates possible RPC error codes.

◆ rpc_error_handler_t

typedef void(^ rpc_error_handler_t) (rpc_error_code_t code, _Nullable rpc_object_t args)

Definition of RPC error handler block type.

Definition at line 116 of file connection.h.

◆ rpc_handler_t

typedef void(^ rpc_handler_t) (const char *_Nullable path, const char *_Nullable interface, const char *_Nonnull name, _Nonnull rpc_object_t args)

Definition of RPC event handler block type.

Definition at line 104 of file connection.h.

◆ rpc_property_handler_t

typedef void(^ rpc_property_handler_t) (_Nonnull rpc_object_t value)

Definition of RPC property change handler block type.

Definition at line 111 of file connection.h.

◆ rpc_raw_handler_t

typedef int(^ rpc_raw_handler_t) (const void *_Nonnull msg, size_t len, const int *_Nullable fds, size_t nfds)

Definition of raw message handler block type.

Definition at line 122 of file connection.h.

Enumeration Type Documentation

◆ rpc_call_status

enum rpc_call_status

Enumerates possible remote procedure call status values.

Enumerator
RPC_CALL_IN_PROGRESS	Call in progress
RPC_CALL_STREAM_START	Streaming response, stream starts
RPC_CALL_MORE_AVAILABLE	Streaming response, more data available
RPC_CALL_DONE	Call finished, response received
RPC_CALL_ERROR	Call finished, error received
RPC_CALL_ABORTED	Call was aborted by the user
RPC_CALL_ENDED	Streaming call ended

Examples:: client.c.

Definition at line 71 of file connection.h.

◆ rpc_call_type

enum rpc_call_type

Enumerates possible remote procedure call status values.

Enumerator
RPC_OUTBOUND_CALL	Call that is made by requestor
RPC_INBOUND_CALL	Call to be delivered to responder

Definition at line 85 of file connection.h.

◆ rpc_error_code

enum rpc_error_code

Enumerates possible RPC error codes.

Enumerator
RPC_INVALID_RESPONSE	Received unreadable response
RPC_CONNECTION_TIMEOUT	Connection timed out
RPC_CONNECTION_CLOSED	Disconnect received
RPC_CALL_TIMEOUT	Request timed out
RPC_SPURIOUS_RESPONSE	Response to unknown request
RPC_LOGOUT	Logged out by server
RPC_TRANSPORT_ERROR	Transport-specific error
RPC_OTHER	Other or unknown reason

Definition at line 56 of file connection.h.

Function Documentation

◆ rpc_call_abort()

int rpc_call_abort ( _Nonnull rpc_call_t call )

Aborts a pending call.

Parameters

call	Call to be aborted

Returns: Function status - success is being reported as 0

◆ rpc_call_continue()

int rpc_call_continue	(	_Nonnull rpc_call_t	call,
		bool	sync
	)

Requests a next chunk of a result from a call.

When sync is set to true the function waits until the call finishes and returns 1 if it has completed successfully - otherwise the function returns 0.

Parameters

call	Call to be continued
sync	Synchronous continue flag

Returns: 1 for successfully completed RPC when sync flag was set, otherwise 0

Examples:: client.c.

◆ rpc_call_free()

void rpc_call_free ( _Nonnull rpc_call_t call )

Frees a rpc_call_t object.

Parameters

call	Call to free

◆ rpc_call_result()

_Nullable rpc_object_t rpc_call_result ( _Nonnull rpc_call_t call )

Returns a call result (or a current fragment).

Parameters

call	Call to get result from

Returns: Result

Examples:: client.c, and libdispatch.c.

◆ rpc_call_set_prefetch()

int rpc_call_set_prefetch	(	_Nonnull rpc_call_t	call,
		size_t	nitems
	)

Sets how many items librpc should prefetch in a streaming call.

Parameters

call
nitems

Returns

Examples:: client.c.

◆ rpc_call_status()

rpc_call_status_t rpc_call_status ( _Nonnull rpc_call_t call )

Returns a current status of a given call as an integer value castable to rpc_call_status_t.

Parameters

call	Call to be checked

Returns: Call status

◆ rpc_call_success()

int rpc_call_success ( _Nonnull rpc_call_t call )

Checks whether a call has been completed successfully.

Parameters

call	Call to be checked

Returns: 1 when call was successfully completed, otherwise 0

◆ rpc_call_timedwait()

int rpc_call_timedwait	(	_Nonnull rpc_call_t	call,
		const struct timespec *_Nonnull	ts
	)

Waits for a call to change status.

If a timeout specified by a ts argument occurs, before a call changes its status, function returns -1 value.

Parameters

call	Call to wait on
ts	Timeout value

Returns: 0 on success, -1 on failure or timeout

◆ rpc_call_wait()

int rpc_call_wait ( _Nonnull rpc_call_t call )

Waits for a call to change status.

Parameters

call	Call to wait on.

Returns: 0 on success, -1 on failure.

Examples:: client.c.

◆ rpc_connection_call()

_Nullable rpc_call_t rpc_connection_call	(	_Nonnull rpc_connection_t	conn,
		const char *_Nullable	path,
		const char *_Nullable	interface,
		const char *_Nonnull	name,
		_Nullable rpc_object_t	args,
		_Nullable rpc_callback_t	callback
	)

Performs a RPC method call using a given connection.

Function returns immediately without waiting for a RPC completion and returns rpc_call_t object representing the ongoing call.

Function supports a callback argument of rpc_callback_t type, which is a pointer to a function to be called on RPC completion. Can be set to NULL when that functionality is not needed by the caller.

Parameters

conn	Connection to do a call on
name	Name of a method to be called
args	Variable length RPC method arguments list
callback	Callback function pointer to be called on RPC completion

Returns: RPC call object

Examples:: client.c, and libdispatch.c.

◆ rpc_connection_call_simple()

_Nullable rpc_object_t rpc_connection_call_simple	(	_Nonnull rpc_connection_t	conn,
		const char *_Nonnull	name,
		const char *_Nonnull	fmt,
			...
	)

Performs a synchronous RPC function call using a given connection.

Function blocks until a result is ready and returns it, or cancels and returns a NULL pointer if a timeout has occurred.

This function can be only used to call pure functions (not operating on objects, that is, like rpc_connection_call_syncp() but with path and interface parameters set to NULL). Use RPC_NULL_FORMAT to indicate a null format string.

Parameters

name
fmt
...

Returns

Examples:: client.c, fd-transport.c, loopback.c, pack-unpack.c, and shm-client.c.

◆ rpc_connection_call_sync()

_Nullable rpc_object_t rpc_connection_call_sync	(	_Nonnull rpc_connection_t	conn,
		const char *_Nullable	path,
		const char *_Nullable	interface,
		const char *_Nonnull	method,
			...
	)

Performs a synchronous RPC method call using a given connection.

Function blocks until a result is ready and returns it, or cancels and returns a NULL pointer if a timeout has occurred.

Method call arguments need to be rpc_object_t instances, followed with a NULL, denoting end of variable argument list.

Parameters

conn	Connection to do a call on
method	Name of a method to be called
...	Called method arguments

Returns: Result of the call

Examples:: fd-client.c.

◆ rpc_connection_call_syncp()

_Nullable rpc_object_t rpc_connection_call_syncp	(	_Nonnull rpc_connection_t	conn,
		const char *_Nullable	path,
		const char *_Nullable	interface,
		const char *_Nonnull	method,
		const char *_Nonnull	fmt,
			...
	)

Performs a synchronous RPC method call using a given connection.

This function is similar to rpc_connection_call_sync(), but instead of taking rpc_object_t arguments, it accepts a format string and a list of values to pack, in format used by the rpc_object_pack() function.

Parameters

conn	Connection handle
method	Name of a method to be called
fmt	Format string
...	Called method arguments

Returns: Result of the call

◆ rpc_connection_call_syncpv()

_Nullable rpc_object_t rpc_connection_call_syncpv	(	_Nonnull rpc_connection_t	conn,
		const char *_Nullable	path,
		const char *_Nullable	interface,
		const char *_Nonnull	method,
		const char *_Nonnull	fmt,
		va_list	ap
	)

A variation of rpc_connection_call_syncp that takes a va_list instead of the variable argument list.

Parameters

conn	Connection handle
path
interface
method
fmt
ap

Returns

◆ rpc_connection_call_syncv()

_Nullable rpc_object_t rpc_connection_call_syncv	(	_Nonnull rpc_connection_t	conn,
		const char *_Nullable	path,
		const char *_Nullable	interface,
		const char *_Nonnull	method,
		va_list	ap
	)

Performs a synchronous RPC method call using a given connection.

Function blocks until a result is ready and returns it, or cancels and returns a NULL pointer if a timeout has occurred.

Instead of variable arguments length in rpc_connection_call() example, this function takes previously assembled variable arguments list structure as its argument.

Parameters

conn	Connection to do a call on
method	Name of a method to be called
ap	Variable arguments list structure describing a method arguments

Returns: Result of the call

◆ rpc_connection_close()

int rpc_connection_close ( _Nonnull rpc_connection_t conn )

Closes the connection and frees all resources associated with it.

Parameters

conn	Connection to close

Returns: 0 on success, -1 on failure

◆ rpc_connection_create()

_Nullable rpc_connection_t rpc_connection_create	(	void *_Nonnull	cookie,
		_Nullable rpc_object_t	params
	)

Creates a new connection from the provided opaque cookie.

Parameters

cookie	Opaque data
params	Transport-specific parameters

Returns: Connection handle or NULL on failure

◆ rpc_connection_free()

void rpc_connection_free ( _Nonnull rpc_connection_t conn )

Frees resources associated with rpc_connection_t.

Parameters

conn	Connection handle

◆ rpc_connection_get_context()

struct rpc_context* _Nullable rpc_connection_get_context ( _Nonnull rpc_connection_t conn )

Returns context associated with the connection.

Parameters

conn	Client connection

Returns: Context handle or NULL if not set

◆ rpc_connection_get_fd()

int rpc_connection_get_fd ( _Nonnull rpc_connection_t conn )

Returns file descriptor associated with the connection.

Parameters

conn	Connection handle

Returns: File descriptor number

◆ rpc_connection_get_property()

_Nullable rpc_object_t rpc_connection_get_property	(	_Nonnull rpc_connection_t	conn,
		const char *_Nullable	path,
		const char *_Nullable	interface,
		const char *_Nonnull	name
	)

Parameters

conn
path
interface
name

Returns

◆ rpc_connection_get_remote_address()

const char* _Nullable rpc_connection_get_remote_address ( _Nonnull rpc_connection_t conn )

Parameters

conn

Returns

Examples:: server.c.

◆ rpc_connection_get_remote_gid()

gid_t rpc_connection_get_remote_gid ( _Nonnull rpc_connection_t conn )

Parameters

conn	Connection handle

Returns

◆ rpc_connection_get_remote_pid()

pid_t rpc_connection_get_remote_pid ( _Nonnull rpc_connection_t conn )

Parameters

conn	Connection handle

Returns

Examples:: client.c.

◆ rpc_connection_get_remote_uid()

uid_t rpc_connection_get_remote_uid ( _Nonnull rpc_connection_t conn )

Gets remote side UID.

Parameters

conn	Connection handle

Returns

◆ rpc_connection_has_credentials()

bool rpc_connection_has_credentials ( _Nonnull rpc_connection_t conn )

Returns true if a connection has associated remote credentials information.

Parameters

conn	Connection handle

Returns: true if credentials information is available, otherwise false

Examples:: client.c.

◆ rpc_connection_is_open()

bool rpc_connection_is_open ( _Nonnull rpc_connection_t conn )

Returns true if connection is open, otherwise false.

This function allows the caller to determine if a connection is in the 'open' state, that is, not aborted or closed. It should only be called on a connection that can't have been freed as its validity is not checked.

Parameters

conn	Connection handle

Returns: true if connection is open, otherwise false

◆ rpc_connection_is_valid()

bool rpc_connection_is_valid ( _Nonnull rpc_connection_t conn )

Returns true if connection is valid, otherwise false.

Unless the caller can guarantee that the connection can't be removed (by for example having created a call on the connection and not freeing it), the connection may become not-valid at any time. This function can be used to safely determine if the connection has been freed.

Parameters

conn	Connection handle

Returns: true if connection is valid, otherwise false

◆ rpc_connection_ping()

int rpc_connection_ping ( _Nonnull rpc_connection_t conn )

Ping the other end of a connection.

◆ rpc_connection_register_event_handler()

void* _Nullable rpc_connection_register_event_handler	(	_Nonnull rpc_connection_t	conn,
		const char *_Nullable	path,
		const char *_Nullable	interface,
		const char *_Nonnull	name,
		_Nullable rpc_handler_t	handler
	)

Registers an event handler block for an event of a given name.

Each time an event occurs, a handler block is going to be called.

If the connection is no longer valid a NULL cookie will be returned and the last RPC error will be set to ECONNRESET. If the subscription is currently being iterated, it temporarily cannot be modified and a NULL cookie will also be returned, with the last error set to EBUSY.

Parameters

conn	Connection to register an event handler for
name	Name of an event to be handled
handler	Event handler of rpc_handler_t type

Returns: Cookie for rpc_connection_unregister_event_handler or NULL.

◆ rpc_connection_send_event()

int rpc_connection_send_event	(	_Nonnull rpc_connection_t	conn,
		const char *_Nullable	path,
		const char *_Nullable	interface,
		const char *_Nonnull	name,
		_Nonnull rpc_object_t	args
	)

Sends an event.

Parameters

conn	Connection to send event across
name	Event name
args	Event arguments or NULL

Returns: 0 on success, -1 on failure

◆ rpc_connection_send_raw_message()

int rpc_connection_send_raw_message	(	_Nonnull rpc_connection_t	conn,
		const void *_Nonnull	msg,
		size_t	len,
		const int *_Nullable	fds,
		size_t	nfds
	)

Parameters

conn
msg
len
fds
nfds

Returns

◆ rpc_connection_set_context()

int rpc_connection_set_context	(	_Nonnull rpc_connection_t	conn,
		struct rpc_context *_Nonnull	ctx
	)

Sets a context into the connection structure to allow a client to receive calls.

It is an error to submit a new context for a server-side connection or for a connection that is not open.

Parameters

conn	Client connection
ctx	Client context

Returns: 0 on success, -1 on failure.

◆ rpc_connection_set_error_handler()

void rpc_connection_set_error_handler	(	_Nonnull rpc_connection_t	conn,
		_Nullable rpc_error_handler_t	handler
	)

Sets global error handler for a connection.

Parameters

conn	Connection to set error handler for
handler	Error handler block

◆ rpc_connection_set_event_handler()

void rpc_connection_set_event_handler	(	_Nonnull rpc_connection_t	conn,
		_Nullable rpc_handler_t	handler
	)

Sets global event handler for a connection.

Parameters

conn	Connection to set event handler for
handler	Handler block

◆ rpc_connection_set_property()

_Nullable rpc_object_t rpc_connection_set_property	(	_Nonnull rpc_connection_t	conn,
		const char *_Nullable	path,
		const char *_Nullable	interface,
		const char *_Nonnull	name,
		rpc_object_t _Nonnull	value
	)

Parameters

conn
path
interface
name
value

Returns

◆ rpc_connection_set_propertyp()

_Nullable rpc_object_t rpc_connection_set_propertyp	(	_Nonnull rpc_connection_t	conn,
		const char *_Nullable	path,
		const char *_Nullable	interface,
		const char *_Nonnull	name,
		const char *_Nonnull	fmt,
			...
	)

Parameters

conn
path
interface
name
fmt
...

Returns

◆ rpc_connection_set_propertypv()

_Nullable rpc_object_t rpc_connection_set_propertypv	(	_Nonnull rpc_connection_t	conn,
		const char *_Nullable	path,
		const char *_Nullable	interface,
		const char *_Nonnull	name,
		const char *_Nonnull	fmt,
		va_list	ap
	)

Parameters

conn
path
interface
name
fmt
ap

Returns

◆ rpc_connection_set_raw_message_handler()

void rpc_connection_set_raw_message_handler	(	_Nonnull rpc_connection_t	conn,
		_Nullable rpc_raw_handler_t	handler
	)

Parameters

conn
handler

Returns

◆ rpc_connection_subscribe_event()

int rpc_connection_subscribe_event	(	_Nonnull rpc_connection_t	conn,
		const char *_Nullable	path,
		const char *_Nullable	interface,
		const char *_Nonnull	name
	)

Subscribes for an event.

This function can be called multiple times on a single event name - subsequent calls will not send a subscribe message to the server, but instead increment internal reference count for a subscription.

Calls to rpc_connection_subscribe_event() must be paired with rpc_connection_unsubscribe_event().

Parameters

conn	Connection to subscribe on
name	Event name

Returns: 0 on success, -1 on failure

◆ rpc_connection_supports_credentials()

bool rpc_connection_supports_credentials ( _Nonnull rpc_connection_t conn )

Checks whether a given connection does support credentials.

Parameters

conn	Connection handle

Returns: true if credentials are supported, otherwise false

◆ rpc_connection_supports_fd_passing()

bool rpc_connection_supports_fd_passing ( _Nonnull rpc_connection_t conn )

Checks whether a given connection does support file descriptor passing.

Parameters

conn	Connection handle

Returns: true if fd passing is supported, otherwise false

◆ rpc_connection_unregister_event_handler()

int rpc_connection_unregister_event_handler	(	_Nonnull rpc_connection_t	conn,
		void *_Nonnull	cookie
	)

Cancels further execution of a given event handler block for ongoing events of a given name.

An error will be indicated if the connection is not valid (ECONNRESET) or if the handler can't be unregistered because the subscription is currently being iterated (EBUSY).

Parameters

conn	Connection to remove event handler from
cookie	Void pointer to event handler itself

Returns: 0 on success, -1 on error

◆ rpc_connection_unsubscribe_event()

int rpc_connection_unsubscribe_event	(	_Nonnull rpc_connection_t	conn,
		const char *_Nullable	path,
		const char *_Nullable	interface,
		const char *_Nonnull	name
	)

Undoes previous event subscription.

This function may either:

decrement reference count of subscription for given event
send unsubscribe message to the server (when subscription reference count reached value of 0)

Parameters

conn	Connection to undo the subscription on
name	Event name

Returns: 0 on success, -1 on failure

◆ rpc_connection_watch_property()

void* _Nullable rpc_connection_watch_property	(	_Nonnull rpc_connection_t	conn,
		const char *_Nullable	path,
		const char *_Nullable	interface,
		const char *_Nonnull	property,
		_Nonnull rpc_property_handler_t	handler
	)

Parameters

conn
path
interface
property
handler

Returns

Macros

Typedefs

Enumerations

Functions

Detailed Description

Macro Definition Documentation

◆ RPC_CALLBACK

◆ RPC_ERROR_HANDLER

◆ RPC_HANDLER

◆ RPC_NULL_FORMAT

◆ RPC_PROPERTY_HANDLER

◆ RPC_RAW_HANDLER

Typedef Documentation

◆ rpc_call_status_t

◆ rpc_call_t

◆ rpc_call_type_t

◆ rpc_callback_t

◆ rpc_connection_t

◆ rpc_error_code_t

◆ rpc_error_handler_t

◆ rpc_handler_t

◆ rpc_property_handler_t

◆ rpc_raw_handler_t

Enumeration Type Documentation

◆ rpc_call_status

◆ rpc_call_type

◆ rpc_error_code

Function Documentation

◆ rpc_call_abort()

◆ rpc_call_continue()

◆ rpc_call_free()

◆ rpc_call_result()

◆ rpc_call_set_prefetch()

◆ rpc_call_status()

◆ rpc_call_success()

◆ rpc_call_timedwait()

◆ rpc_call_wait()

◆ rpc_connection_call()

◆ rpc_connection_call_simple()

◆ rpc_connection_call_sync()

◆ rpc_connection_call_syncp()

◆ rpc_connection_call_syncpv()

◆ rpc_connection_call_syncv()

◆ rpc_connection_close()

◆ rpc_connection_create()

◆ rpc_connection_free()

◆ rpc_connection_get_context()

◆ rpc_connection_get_fd()

◆ rpc_connection_get_property()

◆ rpc_connection_get_remote_address()

◆ rpc_connection_get_remote_gid()

◆ rpc_connection_get_remote_pid()

◆ rpc_connection_get_remote_uid()

◆ rpc_connection_has_credentials()

◆ rpc_connection_is_open()

◆ rpc_connection_is_valid()

◆ rpc_connection_ping()

◆ rpc_connection_register_event_handler()

◆ rpc_connection_send_event()

◆ rpc_connection_send_raw_message()

◆ rpc_connection_set_context()

◆ rpc_connection_set_error_handler()

◆ rpc_connection_set_event_handler()

◆ rpc_connection_set_property()

◆ rpc_connection_set_propertyp()

◆ rpc_connection_set_propertypv()

◆ rpc_connection_set_raw_message_handler()

◆ rpc_connection_subscribe_event()

◆ rpc_connection_supports_credentials()

◆ rpc_connection_supports_fd_passing()

◆ rpc_connection_unregister_event_handler()

◆ rpc_connection_unsubscribe_event()

◆ rpc_connection_watch_property()
