#include <rpc/object.h>
#include <rpc/connection.h>

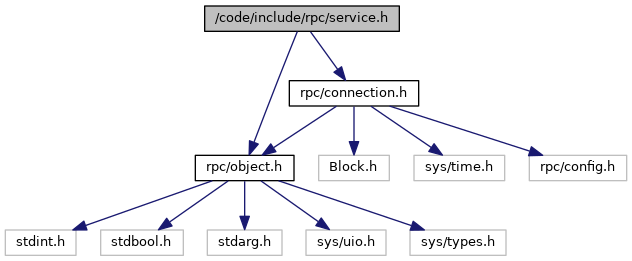

Include dependency graph for service.h:

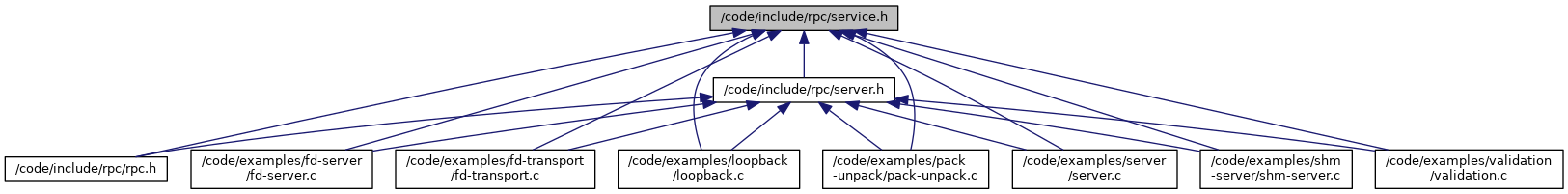

This graph shows which files directly or indirectly include this file:

Classes
struct	rpc_if_method

struct	rpc_if_property

struct	rpc_if_member

Macros
#define	__unsafe_unretained

#define	RPC_FUNCTION_STILL_RUNNING ((rpc_object_t)1)

#define	RPC_DISCOVERABLE_INTERFACE "com.twoporeguys.librpc.Discoverable"

#define	RPC_INTROSPECTABLE_INTERFACE "com.twoporeguys.librpc.Introspectable"

#define	RPC_OBSERVABLE_INTERFACE "com.twoporeguys.librpc.Observable"

#define	RPC_DEFAULT_INTERFACE "com.twoporeguys.librpc.Default"

#define	RPC_FUNCTION(_fn)

#define	RPC_PROPERTY_GETTER(_fn)

#define	RPC_PROPERTY_SETTER(_fn)

#define	RPC_ABORT_HANDLER(_fn, _arg)

#define	RPC_EVENT(_name)

#define	RPC_PROPERTY_RO(_name, _getter)

#define	RPC_PROPERTY_WO(_name, _setter)

#define	RPC_PROPERTY_RW(_name, _getter, _setter)

#define	RPC_METHOD(_name, _fn)

#define	RPC_METHOD_BLOCK(_name, _block)

#define	RPC_MEMBER_END {}

Typedefs
typedef struct rpc_context *	rpc_context_t

typedef struct rpc_instance *	rpc_instance_t

typedef _Nullable rpc_object_t(^	rpc_function_t) (void *_Nonnull cookie, _Nonnull rpc_object_t args)

typedef _Nullable rpc_object_t(*	rpc_function_f) (void *_Nonnull cookie, _Nonnull rpc_object_t args)

typedef _Nullable rpc_object_t(^	rpc_property_getter_t) (void *_Nonnull cookie)

typedef void(^	rpc_property_setter_t) (void *_Nonnull cookie, _Nonnull rpc_object_t value)

typedef void(^	rpc_abort_handler_t) (void)

Enumerations
enum	rpc_if_member_type { RPC_MEMBER_EVENT, RPC_MEMBER_PROPERTY, RPC_MEMBER_METHOD }

enum	rpc_property_rights { RPC_PROPERTY_READ = (1 << 0), RPC_PROPERTY_WRITE = (1 << 1) }

Functions
_Nonnull rpc_context_t	rpc_context_create (void)

void	rpc_context_free (_Nonnull rpc_context_t context)

_Nullable rpc_instance_t	rpc_context_find_instance (_Nonnull rpc_context_t context, const char *_Nonnull path)

_Nonnull rpc_instance_t	rpc_context_get_root (_Nonnull rpc_context_t context)

int	rpc_context_register_instance (_Nonnull rpc_context_t context, _Nonnull rpc_instance_t instance)

void	rpc_context_unregister_instance (_Nonnull rpc_context_t context, const char *_Nonnull path)

int	rpc_context_register_member (_Nonnull rpc_context_t context, const char _Nullable interface, struct rpc_if_member _Nonnull m)

int	rpc_context_register_block (_Nonnull rpc_context_t context, const char _Nullable interface, const char _Nonnull name, void *_Nullable arg, _Nonnull rpc_function_t func)

int	rpc_context_register_func (_Nonnull rpc_context_t context, const char _Nullable interface, const char _Nonnull name, void *_Nullable arg, _Nonnull rpc_function_f func)

int	rpc_context_unregister_member (_Nonnull rpc_context_t context, const char _Nullable interface, const char _Nonnull name)

void	rpc_context_set_pre_call_hook (_Nonnull rpc_context_t context, _Nonnull rpc_function_t fn)

void	rpc_context_set_post_call_hook (_Nonnull rpc_context_t context, _Nonnull rpc_function_t fn)

_Nullable rpc_call_t	rpc_context_dispatch_call (_Nonnull rpc_context_t context, const char *_Nonnull name, _Nullable rpc_object_t args)

void	rpc_context_emit_event (_Nonnull rpc_context_t context, const char _Nullable path, const char _Nullable interface, const char *_Nonnull name, _Nonnull rpc_object_t args)

void *_Nullable	rpc_function_get_arg (void *_Nonnull cookie)

_Nonnull rpc_context_t	rpc_function_get_context (void *_Nonnull cookie)

_Nullable rpc_connection_t	rpc_function_get_connection (void *_Nonnull cookie)

_Nonnull rpc_instance_t	rpc_function_get_instance (void *_Nonnull cookie)

const char *_Nonnull	rpc_function_get_name (void *_Nonnull cookie)

const char *_Nonnull	rpc_function_get_path (void *_Nonnull cookie)

const char *_Nonnull	rpc_function_get_interface (void *_Nonnull cookie)

void	rpc_function_respond (void *_Nonnull cookie, _Nullable rpc_object_t object)

void	rpc_function_error (void _Nonnull cookie, int code, const char _Nonnull message,...)

void	rpc_function_error_ex (void *_Nonnull cookie, _Nonnull rpc_object_t exception)

int	rpc_function_start_stream (void *_Nonnull cookie)

int	rpc_function_yield (void *_Nonnull cookie, _Nonnull rpc_object_t fragment)

void	rpc_function_end (void *_Nonnull cookie)

void	rpc_function_kill (void *_Nonnull cookie)

bool	rpc_function_should_abort (void *_Nonnull cookie)

void	rpc_function_set_async_abort_handler (void *_Nonnull cookie, _Nullable rpc_abort_handler_t handler)

int	rpc_function_retain (void *_Nonnull cookie)

int	rpc_function_release (void *_Nonnull cookie)

_Nullable rpc_instance_t	rpc_instance_new (void _Nullable arg, const char _Nonnull fmt,...)

void	rpc_instance_set_description (_Nonnull rpc_instance_t instance, const char *_Nonnull fmt,...)

void *_Nullable	rpc_instance_get_arg (_Nonnull rpc_instance_t instance)

const char *_Nonnull	rpc_instance_get_path (_Nonnull rpc_instance_t instance)

int	rpc_instance_register_interface (_Nonnull rpc_instance_t instance, const char _Nonnull interface, const struct rpc_if_member _Nullable vtable, void *_Nullable arg)

void	rpc_instance_unregister_interface (_Nonnull rpc_instance_t instance, const char *_Nonnull interface)

int	rpc_instance_register_member (_Nonnull rpc_instance_t instance, const char _Nonnull interface, const struct rpc_if_member _Nonnull member)

int	rpc_instance_unregister_member (_Nonnull rpc_instance_t instance, const char _Nonnull interface, const char _Nonnull name)

int	rpc_instance_register_block (_Nonnull rpc_instance_t instance, const char _Nonnull interface, const char _Nonnull name, void *_Nullable arg, _Nonnull rpc_function_t fn)

int	rpc_instance_register_func (_Nonnull rpc_instance_t instance, const char _Nonnull interface, const char _Nonnull name, void *_Nullable arg, _Nonnull rpc_function_f fn)

struct rpc_if_member *_Nullable	rpc_instance_find_member (_Nonnull rpc_instance_t instance, const char _Nullable interface, const char _Nonnull name)

bool	rpc_instance_has_interface (_Nonnull rpc_instance_t instance, const char *_Nonnull interface)

void	rpc_instance_emit_event (_Nonnull rpc_instance_t instance, const char _Nonnull interface, const char _Nonnull name, _Nonnull rpc_object_t args)

int	rpc_instance_register_property (_Nonnull rpc_instance_t instance, const char _Nonnull interface, const char _Nonnull name, void *_Nullable arg, _Nullable rpc_property_getter_t getter, _Nullable rpc_property_setter_t setter)

int	rpc_instance_get_property_rights (_Nonnull rpc_instance_t instance, const char _Nonnull interface, const char _Nonnull name)

int	rpc_instance_register_event (_Nonnull rpc_instance_t instance, const char _Nonnull interface, const char _Nonnull name)

void	rpc_instance_property_changed (_Nonnull rpc_instance_t instance, const char _Nonnull interface, const char _Nonnull name, _Nullable rpc_object_t value)

_Nonnull rpc_instance_t	rpc_property_get_instance (void *_Nonnull cookie)

void *_Nullable	rpc_property_get_arg (void *_Nonnull cookie)

void	rpc_property_error (void _Nonnull cookie, int code, const char _Nonnull fmt,...)

void	rpc_instance_free (_Nonnull rpc_instance_t instance)

Detailed Description

RPC service API.

Definition in file service.h.

Macro Definition Documentation

◆ RPC_ABORT_HANDLER

#define RPC_ABORT_HANDLER	(	_fn,
		_arg
	)

Value:

^(void *_cookie) {                      \
        _fn(_arg);                      \
    }

Definition at line 128 of file service.h.

◆ RPC_EVENT

#define RPC_EVENT ( _name )

Value:

{                               \
        .rim_type = RPC_MEMBER_EVENT,               \
        .rim_name = (#_name)                    \
    }

Definition at line 133 of file service.h.

◆ RPC_FUNCTION

#define RPC_FUNCTION ( _fn )

Value:

^(void *_cookie, rpc_object_t _args) {              \
        return ((rpc_object_t)_fn(_cookie, _args));     \
    }

A macro to convert function pointer into rpc_function_t block.

Examples:: validation.c.

Definition at line 113 of file service.h.

◆ RPC_FUNCTION_STILL_RUNNING

#define RPC_FUNCTION_STILL_RUNNING ((rpc_object_t)1)

Marks the function as "still running" even though the implementing call returned.

Definition at line 55 of file service.h.

◆ RPC_METHOD

#define RPC_METHOD	(	_name,
		_fn
	)

Value:

{                               \
        .rim_type = RPC_MEMBER_METHOD,              \
        .rim_name = (#_name),                   \
        .rim_method = {                     \
                        .rm_block = RPC_FUNCTION(_fn),          \
            .rm_arg = NULL                  \
                }                           \
    }

A convenience macro to declare RPC method in the vtable array.

Examples:: validation.c.

Definition at line 184 of file service.h.

◆ RPC_METHOD_BLOCK

#define RPC_METHOD_BLOCK	(	_name,
		_block
	)

Value:

{                               \
        .rim_type = RPC_MEMBER_METHOD,              \
        .rim_name = (#_name),                   \
        .rim_method = {                     \
                        .rm_block = (_block),               \
                }                           \
    }

Same as RPC_METHOD, but takes a block instead of a function pointer.

Definition at line 198 of file service.h.

◆ RPC_PROPERTY_GETTER

#define RPC_PROPERTY_GETTER ( _fn )

Value:

^(void *_cookie) {                      \
        return ((rpc_object_t)_fn(_cookie));            \
    }

Definition at line 118 of file service.h.

◆ RPC_PROPERTY_RO

#define RPC_PROPERTY_RO	(	_name,
		_getter
	)

Value:

{                               \
        .rim_type = RPC_MEMBER_PROPERTY,            \
        .rim_name = (#_name),                   \
        .rim_property = {                   \
                        .rp_getter = RPC_PROPERTY_GETTER(_getter),  \
            .rp_setter = NULL,              \
            .rp_arg = NULL                  \
                }                           \
    }

A convenience macro to declare read-only property in the vtable array.

Definition at line 142 of file service.h.

◆ RPC_PROPERTY_RW

#define RPC_PROPERTY_RW	(	_name,
		_getter,
		_setter
	)

Value:

{                               \
        .rim_type = RPC_MEMBER_PROPERTY,            \
        .rim_name = (#_name),                   \
        .rim_property = {                   \
                        .rp_getter = RPC_PROPERTY_GETTER(_getter),  \
            .rp_setter = RPC_PROPERTY_SETTER(_setter),  \
            .rp_arg = NULL                  \
                }                           \
    }

A convenience macro to declare read-write property in the vtable array.

Definition at line 170 of file service.h.

◆ RPC_PROPERTY_SETTER

#define RPC_PROPERTY_SETTER ( _fn )

Value:

^(void *_cookie, rpc_object_t _value) {             \
        _fn(_cookie, _value);                   \
    }

Definition at line 123 of file service.h.

◆ RPC_PROPERTY_WO

#define RPC_PROPERTY_WO	(	_name,
		_setter
	)

Value:

{                               \
        .rim_type = RPC_MEMBER_PROPERTY,            \
        .rim_name = (#_name),                   \
        .rim_property = {                   \
                        .rp_getter = NULL,              \
            .rp_setter = RPC_PROPERTY_SETTER(_setter),  \
            .rp_arg = NULL                  \
                }                           \
    }

A convenience macro to declare write-only property in the vtable array.

Definition at line 156 of file service.h.

Typedef Documentation

◆ rpc_abort_handler_t

typedef void(^ rpc_abort_handler_t) (void)

Asynchronous abort handler block type.

Definition at line 108 of file service.h.

◆ rpc_context_t

typedef struct rpc_context* rpc_context_t

RPC context handle.

Definition at line 75 of file service.h.

◆ rpc_function_f

typedef _Nullable rpc_object_t(* rpc_function_f) (void *_Nonnull cookie, _Nonnull rpc_object_t args)

Method function type.

Definition at line 91 of file service.h.

◆ rpc_function_t

typedef _Nullable rpc_object_t(^ rpc_function_t) (void *_Nonnull cookie, _Nonnull rpc_object_t args)

Method block type.

Definition at line 85 of file service.h.

◆ rpc_instance_t

typedef struct rpc_instance* rpc_instance_t

RPC instance handle.

Definition at line 80 of file service.h.

◆ rpc_property_getter_t

typedef _Nullable rpc_object_t(^ rpc_property_getter_t) (void *_Nonnull cookie)

Property getter block type.

Definition at line 97 of file service.h.

◆ rpc_property_setter_t

typedef void(^ rpc_property_setter_t) (void *_Nonnull cookie, _Nonnull rpc_object_t value)

Property setter block type.

Definition at line 102 of file service.h.

Enumeration Type Documentation

◆ rpc_if_member_type

enum rpc_if_member_type

Enumerates possible kinds of RPC interface members.

Enumerator
RPC_MEMBER_EVENT	Event member
RPC_MEMBER_PROPERTY	Property member
RPC_MEMBER_METHOD	Method member

Definition at line 212 of file service.h.

◆ rpc_property_rights

enum rpc_property_rights

Enumerates possible property right flags.

Enumerator
RPC_PROPERTY_READ	Property is readable
RPC_PROPERTY_WRITE	Property is writable

Definition at line 222 of file service.h.

Function Documentation

◆ rpc_context_create()

_Nonnull rpc_context_t rpc_context_create ( void )

Creates a new RPC context.

Returns: Newly created RPC context object.

Examples:: fd-server.c, fd-transport.c, loopback.c, pack-unpack.c, server.c, shm-server.c, and validation.c.

◆ rpc_context_dispatch_call()

_Nullable rpc_call_t rpc_context_dispatch_call	(	_Nonnull rpc_context_t	context,
		const char *_Nonnull	name,
		_Nullable rpc_object_t	args
	)

Parameters

context	RPC context handle
name
args

Returns

◆ rpc_context_emit_event()

void rpc_context_emit_event	(	_Nonnull rpc_context_t	context,
		const char *_Nullable	path,
		const char *_Nullable	interface,
		const char *_Nonnull	name,
		_Nonnull rpc_object_t	args
	)

Parameters

context
path
interface
name

◆ rpc_context_find_instance()

_Nullable rpc_instance_t rpc_context_find_instance	(	_Nonnull rpc_context_t	context,
		const char *_Nonnull	path
	)

Finds an instance registered in context.

Parameters

context	RPC context handle
path	Instance path

Returns: RPC instance handle or NULL if not found

◆ rpc_context_free()

void rpc_context_free ( _Nonnull rpc_context_t context )

Disposes existing RPC context and frees all associated resources.

Parameters

context Context to dispose

◆ rpc_context_get_root()

_Nonnull rpc_instance_t rpc_context_get_root ( _Nonnull rpc_context_t context )

Returns root instance associated with context.

Parameters

context RPC context handle

Returns: RPC instance handle

◆ rpc_context_register_block()

int rpc_context_register_block	(	_Nonnull rpc_context_t	context,
		const char *_Nullable	interface,
		const char *_Nonnull	name,
		void *_Nullable	arg,
		_Nonnull rpc_function_t	func
	)

Registers a given block as a RPC method for a given context.

Parameters

context	Target context.
name	Method name.
descr	Method description.
arg	Method context.
func	RPC method block.

Returns: Status.

Examples:: fd-transport.c, loopback.c, pack-unpack.c, and server.c.

◆ rpc_context_register_func()

int rpc_context_register_func	(	_Nonnull rpc_context_t	context,
		const char *_Nullable	interface,
		const char *_Nonnull	name,
		void *_Nullable	arg,
		_Nonnull rpc_function_f	func
	)

Registers a given function as a RPC method for a given context.

Parameters

context	Target context.
name	Method name.
descr	Method description.
arg	Method context.
func	RPC method function

Returns: Status.

Examples:: fd-server.c, server.c, and shm-server.c.

◆ rpc_context_register_instance()

int rpc_context_register_instance	(	_Nonnull rpc_context_t	context,
		_Nonnull rpc_instance_t	instance
	)

Registers a new instance in context instance tree.

Parameters

context	RPC context handle
instance	RPC instance handle

Returns: 0 on success, -1 on error

Examples:: validation.c.

◆ rpc_context_register_member()

int rpc_context_register_member	(	_Nonnull rpc_context_t	context,
		const char *_Nullable	interface,
		struct rpc_if_member *_Nonnull	m
	)

Registers a given rpc_method structure as an RPC method in a given context.

The method must have a non-null name.

Parameters

context	Target context.
m	RPC method structure.

Returns: Status.

◆ rpc_context_set_post_call_hook()

void rpc_context_set_post_call_hook	(	_Nonnull rpc_context_t	context,
		_Nonnull rpc_function_t	fn
	)

Installs a hook for every RPC function called.

The hook will be called after an actual implementation of RPC function is called.

Parameters

context	Target context
fn	Hook function

Examples:: validation.c.

◆ rpc_context_set_pre_call_hook()

void rpc_context_set_pre_call_hook	(	_Nonnull rpc_context_t	context,
		_Nonnull rpc_function_t	fn
	)

Installs a hook for every RPC function called.

The hook will be called before an actual implementation of RPC function gets called.

Parameters

context	Target context
fn	Hook function

Examples:: validation.c.

◆ rpc_context_unregister_instance()

void rpc_context_unregister_instance	(	_Nonnull rpc_context_t	context,
		const char *_Nonnull	path
	)

Parameters

context
path

◆ rpc_context_unregister_member()

int rpc_context_unregister_member	(	_Nonnull rpc_context_t	context,
		const char *_Nullable	interface,
		const char *_Nonnull	name
	)

Unregisters a given RPC method.

Parameters

context	Target context.
name	Method name.

Returns: Status.

◆ rpc_function_end()

void rpc_function_end ( void *_Nonnull cookie )

Ends a streaming response.

When that function is called, sending further responses (either singular, streaming or error responses) is not allowed. Return value of a method functions is ignored.

Parameters

cookie Running call handle

Examples:: server.c.

◆ rpc_function_error()

void rpc_function_error	(	void *_Nonnull	cookie,
		int	code,
		const char *_Nonnull	message,
			...
	)

Sends an error response to a call.

This function may be called only once during the lifetime of a single call (for a given cookie). When called, return value of a method is silently ignored (it is preferred to return NULL).

When called in a streaming function, implicitly ends streaming response.

Parameters

cookie	Running call handle
code	Error (errno) code
message	Error message format
...	Format arguments

Examples:: fd-server.c, and shm-server.c.

◆ rpc_function_error_ex()

void rpc_function_error_ex	(	void *_Nonnull	cookie,
		_Nonnull rpc_object_t	exception
	)

Reports an exception for a given ongoing call identifier.

Parameters

cookie	Running call handle
exception	Exception object

◆ rpc_function_get_arg()

void* _Nullable rpc_function_get_arg ( void *_Nonnull cookie )

Returns the argument associated with method.

Parameters

cookie Running call handle

◆ rpc_function_get_connection()

_Nullable rpc_connection_t rpc_function_get_connection ( void *_Nonnull cookie )

Returns the connection associated with call.

Parameters

cookie Running call handle

Returns: RPC connection handle or NULL if the connection is closed/aborted.

◆ rpc_function_get_context()

_Nonnull rpc_context_t rpc_function_get_context ( void *_Nonnull cookie )

Returns the RPC context handle associated with currently executing function.

Parameters

cookie Running call handle

Returns: RPC context handle

◆ rpc_function_get_instance()

_Nonnull rpc_instance_t rpc_function_get_instance ( void *_Nonnull cookie )

Returns the instance handle associated with currently executing function.

Parameters

cookie Running call handle

Returns: RPC context handle

◆ rpc_function_get_interface()

const char* _Nonnull rpc_function_get_interface ( void *_Nonnull cookie )

Returns the called interface name or NULL.

Parameters

cookie Running call handle

◆ rpc_function_get_name()

const char* _Nonnull rpc_function_get_name ( void *_Nonnull cookie )

Returns the called method name.

Parameters

cookie Running call handle

◆ rpc_function_get_path()

const char* _Nonnull rpc_function_get_path ( void *_Nonnull cookie )

Returns the path method was called on or NULL.

Parameters

cookie Running call handle

◆ rpc_function_kill()

void rpc_function_kill ( void *_Nonnull cookie )

Asynchronously abort a running call on the server.

This function makes rpc_function_should_abort return true and a running rpc_function_yield to return immediately with an error.

Parameters

cookie Running call handle

◆ rpc_function_release()

int rpc_function_release ( void *_Nonnull cookie )

Decrements the refcount on a call.

Releases the callers interest in the call.

Parameters

cookie Running call handle

Returns: 0 on success or -1 if the call is no longer valid.

◆ rpc_function_respond()

void rpc_function_respond	(	void *_Nonnull	cookie,
		_Nullable rpc_object_t	object
	)

Sends a response to a call.

This function may be called only once during the lifetime of a single call (for a given cookie). When called, return value of a method is silently ignored (it is preferred to return NULL).

Parameters

cookie	Running call handle
object	Response.

◆ rpc_function_retain()

int rpc_function_retain ( void *_Nonnull cookie )

Increments the refcount on a call.

Indicates that the caller has an interest in tha call and it cannot be freed until that interest is released.

Parameters

cookie Running call handle

Returns: 0 if the call is retained or -1 if the call is no longer valid.

◆ rpc_function_set_async_abort_handler()

void rpc_function_set_async_abort_handler	(	void *_Nonnull	cookie,
		_Nullable rpc_abort_handler_t	handler
	)

Sets a callback to be called when running method got an abort signal from the client.

Parameters

cookie	Running call handle
handler	Abort handling block

◆ rpc_function_should_abort()

bool rpc_function_should_abort ( void *_Nonnull cookie )

Returns the value of a flag saying whether or not a method should immediately stop because it was aborted on the client side.

Parameters

cookie Running call handle

Returns: Whether or not function should abort

◆ rpc_function_start_stream()

int rpc_function_start_stream ( void *_Nonnull cookie )

Signalizes a start of a streaming response.

Parameters

cookie Running call handle

Returns: Status. Success is reported by returning 0

Examples:: server.c.

◆ rpc_function_yield()

int rpc_function_yield	(	void *_Nonnull	cookie,
		_Nonnull rpc_object_t	fragment
	)

Generates a new value in a streaming response.

Parameters

cookie	Running call handle
fragment	Next data fragment

Returns: Status. Success is reported by returning 0

Examples:: server.c.

◆ rpc_instance_emit_event()

void rpc_instance_emit_event	(	_Nonnull rpc_instance_t	instance,
		const char *_Nonnull	interface,
		const char *_Nonnull	name,
		_Nonnull rpc_object_t	args
	)

Parameters

instance	Instance handle
interface	Interface name
name

◆ rpc_instance_find_member()

struct rpc_if_member* _Nullable rpc_instance_find_member	(	_Nonnull rpc_instance_t	instance,
		const char *_Nullable	interface,
		const char *_Nonnull	name
	)

Finds member called name belonging to a interface in instance.

Parameters

instance	Instance handle
interface	Interface name
name	Member name

Returns: rpc_if_member structure pointer or NULL if not found.

◆ rpc_instance_free()

void rpc_instance_free ( _Nonnull rpc_instance_t instance )

Releases instance handle.

Parameters

instance Instance handle

◆ rpc_instance_get_arg()

void* _Nullable rpc_instance_get_arg ( _Nonnull rpc_instance_t instance )

Returns the user data pointer associated with instance.

Parameters

instance Instance handle

Returns: User data pointer

◆ rpc_instance_get_path()

const char* _Nonnull rpc_instance_get_path ( _Nonnull rpc_instance_t instance )

Returns instance path.

Parameters

instance Instance handle

Returns: Instance path

◆ rpc_instance_get_property_rights()

int rpc_instance_get_property_rights	(	_Nonnull rpc_instance_t	instance,
		const char *_Nonnull	interface,
		const char *_Nonnull	name
	)

Returns access rights of property name of interface interface implemented in instance instance.

Parameters

instance	Instance handle
interface	Interface name
name	Property name

Returns

◆ rpc_instance_has_interface()

bool rpc_instance_has_interface	(	_Nonnull rpc_instance_t	instance,
		const char *_Nonnull	interface
	)

Tells whether or not instance implements interface interface.

Parameters

instance	Instance handle
interface	Interface name

Returns: true if implemented, otherwise false

◆ rpc_instance_new()

_Nullable rpc_instance_t rpc_instance_new	(	void *_Nullable	arg,
		const char *_Nonnull	fmt,
			...
	)

Creates a new instance handle.

Parameters

path	Instance path
arg	User data pointer

Returns

Examples:: validation.c.

◆ rpc_instance_property_changed()

void rpc_instance_property_changed	(	_Nonnull rpc_instance_t	instance,
		const char *_Nonnull	interface,
		const char *_Nonnull	name,
		_Nullable rpc_object_t	value
	)

Notifies the librpc layer that property value has changed.

This function is used to notify remote property listeners that the value might have changed.

If value is NULL, then librpc will internally query the getter for the value.

Parameters

instance	Instance handle
interface	Interface name
name	Property name
value	New property value

◆ rpc_instance_register_block()

int rpc_instance_register_block	(	_Nonnull rpc_instance_t	instance,
		const char *_Nonnull	interface,
		const char *_Nonnull	name,
		void *_Nullable	arg,
		_Nonnull rpc_function_t	fn
	)

Registers a new method called name on interface interface under instance instance.

Parameters

instance	Instance handle
interface	Interface name
name	Method name
arg	Method private data pointer
fn	Block

Returns: 0 on success, -1 on error

◆ rpc_instance_register_event()

int rpc_instance_register_event	(	_Nonnull rpc_instance_t	instance,
		const char *_Nonnull	interface,
		const char *_Nonnull	name
	)

Parameters

instance	Instance handle
interface	Interface name
name

Returns

◆ rpc_instance_register_func()

int rpc_instance_register_func	(	_Nonnull rpc_instance_t	instance,
		const char *_Nonnull	interface,
		const char *_Nonnull	name,
		void *_Nullable	arg,
		_Nonnull rpc_function_f	fn
	)

Same as rpc_instance_register_block, but takes a function pointer instead.

Parameters

instance	Instance handle
interface	Interface name
name	Method name
arg	Method private data pointer
fn	Function pointer

◆ rpc_instance_register_interface()

int rpc_instance_register_interface	(	_Nonnull rpc_instance_t	instance,
		const char *_Nonnull	interface,
		const struct rpc_if_member *_Nullable	vtable,
		void *_Nullable	arg
	)

Registers interface interface under instance.

Parameters

instance	Instance handle
interface	Interface name
vtable	Member virtual table (vtable)
arg	User data pointer

Returns: 0 on success, -1 on error

Examples:: validation.c.

◆ rpc_instance_register_member()

int rpc_instance_register_member	(	_Nonnull rpc_instance_t	instance,
		const char *_Nonnull	interface,
		const struct rpc_if_member *_Nonnull	member
	)

Registers a single member of interface interface under instance.

Parameters

instance	Intance handle
interface	Interface name
member	Member descriptor

Returns: 0 on success, -1 on error

◆ rpc_instance_register_property()

int rpc_instance_register_property	(	_Nonnull rpc_instance_t	instance,
		const char *_Nonnull	interface,
		const char *_Nonnull	name,
		void *_Nullable	arg,
		_Nullable rpc_property_getter_t	getter,
		_Nullable rpc_property_setter_t	setter
	)

Registers property named name on interface interface under instance instance.

The property can be:

read-only, when getter is non-NULL and setter is NULL
write-only, when getter is NULL and setter is non-NULL
read-write, when both getter and setter blocks are provided.

Parameters

instance	Instance handle
interface	Interface name
name	Property name
arg	User data pointer
getter	Getter block or NULL if write-only
setter	Setter block or NULL if read-nly

Returns: 0 on success, -1 on error

◆ rpc_instance_set_description()

void rpc_instance_set_description	(	_Nonnull rpc_instance_t	instance,
		const char *_Nonnull	fmt,
			...
	)

Sets the description string of an instance.

Parameters

instance	Instance handle
fmt	Format string
...	Format arguments

◆ rpc_instance_unregister_interface()

void rpc_instance_unregister_interface	(	_Nonnull rpc_instance_t	instance,
		const char *_Nonnull	interface
	)

Unregisters interface interface from instance along with all interface members.

Parameters

instance	Instance handle
interface	Interface name

◆ rpc_instance_unregister_member()

int rpc_instance_unregister_member	(	_Nonnull rpc_instance_t	instance,
		const char *_Nonnull	interface,
		const char *_Nonnull	name
	)

Unregisters a previously registered member named name from interface interface on instance.

Parameters

instance	Instance handle
interface	Interface name
name	Member name

Returns: 0 on success, -1 on error

◆ rpc_property_error()

void rpc_property_error	(	void *_Nonnull	cookie,
		int	code,
		const char *_Nonnull	fmt,
			...
	)

Indicate that the current getter or setter run should generate an error.

After using this function, return value from the getter is ignored.

Parameters

cookie	Property call handle
code	Error code
fmt	Message format string
...	Format string arguments

◆ rpc_property_get_arg()

void* _Nullable rpc_property_get_arg ( void *_Nonnull cookie )

Returns the user data pointer associated with the currently running getter/setter.

Parameters

cookie Property call handle

Returns: User data pointer

◆ rpc_property_get_instance()

_Nonnull rpc_instance_t rpc_property_get_instance ( void *_Nonnull cookie )

Returns instance associated with the getter or setter call.

Parameters

cookie Running call identifier

Returns: Instance handle

Classes

Macros

Typedefs

Enumerations

Functions

Detailed Description

Macro Definition Documentation

◆ RPC_ABORT_HANDLER

◆ RPC_EVENT

◆ RPC_FUNCTION

◆ RPC_FUNCTION_STILL_RUNNING

◆ RPC_METHOD

◆ RPC_METHOD_BLOCK

◆ RPC_PROPERTY_GETTER

◆ RPC_PROPERTY_RO

◆ RPC_PROPERTY_RW

◆ RPC_PROPERTY_SETTER

◆ RPC_PROPERTY_WO

Typedef Documentation

◆ rpc_abort_handler_t

◆ rpc_context_t

◆ rpc_function_f

◆ rpc_function_t

◆ rpc_instance_t

◆ rpc_property_getter_t

◆ rpc_property_setter_t

Enumeration Type Documentation

◆ rpc_if_member_type

◆ rpc_property_rights

Function Documentation

◆ rpc_context_create()

◆ rpc_context_dispatch_call()

◆ rpc_context_emit_event()

◆ rpc_context_find_instance()

◆ rpc_context_free()

◆ rpc_context_get_root()

◆ rpc_context_register_block()

◆ rpc_context_register_func()

◆ rpc_context_register_instance()

◆ rpc_context_register_member()

◆ rpc_context_set_post_call_hook()

◆ rpc_context_set_pre_call_hook()

◆ rpc_context_unregister_instance()

◆ rpc_context_unregister_member()

◆ rpc_function_end()

◆ rpc_function_error()

◆ rpc_function_error_ex()

◆ rpc_function_get_arg()

◆ rpc_function_get_connection()

◆ rpc_function_get_context()

◆ rpc_function_get_instance()

◆ rpc_function_get_interface()

◆ rpc_function_get_name()

◆ rpc_function_get_path()

◆ rpc_function_kill()

◆ rpc_function_release()

◆ rpc_function_respond()

◆ rpc_function_retain()

◆ rpc_function_set_async_abort_handler()

◆ rpc_function_should_abort()

◆ rpc_function_start_stream()

◆ rpc_function_yield()

◆ rpc_instance_emit_event()

◆ rpc_instance_find_member()

◆ rpc_instance_free()

◆ rpc_instance_get_arg()

◆ rpc_instance_get_path()

◆ rpc_instance_get_property_rights()

◆ rpc_instance_has_interface()

◆ rpc_instance_new()

◆ rpc_instance_property_changed()

◆ rpc_instance_register_block()

◆ rpc_instance_register_event()

◆ rpc_instance_register_func()

◆ rpc_instance_register_interface()

◆ rpc_instance_register_member()

◆ rpc_instance_register_property()

◆ rpc_instance_set_description()

◆ rpc_instance_unregister_interface()

◆ rpc_instance_unregister_member()
